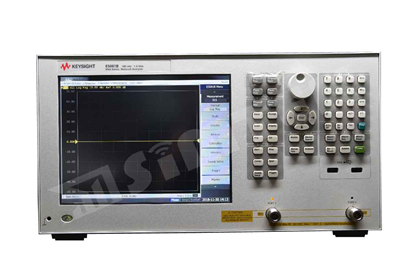

E5061B

Keysight ENA-L series network analyzers are flexible and applicable in a wide range of industries and applications. Designed to reduce tune and test times, the Keysight E5061B analyzer provides increased throughput to improve your measurement productivity. From low to high frequencies, an E5061B network analyzer rental is an ideal solution in aerospace, computer, medical, CATV, wireless communications, and other test and measurement settings. This network analyzer rental also offers a new standard of frequency-domain device analysis in the 5Hz-3GHz range.

Detail

Specifications

  • Maximum Frequency                                          3 GHz
  • Dynamic Range                                                  120 dB
  • Output Power                                                      10 dBm
  • Number of Built-In Ports                                    2 ports
  • Harmonics                                                          -25 dBc
  • Best Speed at 201 Point, 1 Sweep                      9 ms
  • Components                                                        Cables, Amplifiers, Resonators, DC-DC Converters/PDNs, Antenna/Coil/RFIDs, Filters, LCR Components
  • Operating System                                               Windows XP / Windows 7 / Windows 10

Key Features and Functions

  • Select the best configuration for your test needs from a wide variety of test set options: 100 kHz to 1.5 GHz / 3 GHz, 2-port, 50 or 75 ohm, transmission/reflection or S-parameter test set
  • Address a broad range of applications with the LF-RF option (Option 3L5/3L4/3L3): 5 Hz to 3 GHz, 2-port, 50 ohm, S-parameter test set, gain-phase test port, built-in DC bias source
  • Combine network analysis and impedance analysis to customize your application in a single instrument (Option 3L5/3L4/3L3 plus 005)
