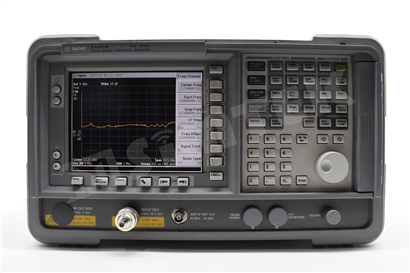

E4407B

The Agilent ESA-E Series is our mid-performance spectrum analyzer solution for the future. The series sets the performance standards in measurement speed, dynamic range, accuracy, and resolving power for similarly priced products. Its flexible platform design enables R&D, manufacturing, and field service engineers to customize the product to meet specific testing needs and to upgrade the product with new features when required. The products' selection of one button measurement solutions combined with its easily navigable user interface and performance in speed allows engineers to spend less time testing and more time designing, building, and trouble shooting components and products.

Detail

Performance

  • 0.4 dB overall amplitude accuracy
  • -167 dBm DANL, with internal preamp

Measurement Applications

  • Phase Noise, Noise Figure, GSM/EDGE and cdmaOne
  • PowerSuite one-button power measurements included as standard

Features

  • 10 MHz analysis bandwidth
  • Segmented sweep for up to 32 discontinuous spans in one sweep
  • Rugged and portable for lab grade performance in the field
  • 5 minutes warm-up to guaranteed measurement accuracy

Configuration selections

  • Standard express analyzer E4407B-STD for faster delivery time, includes options AYX, BAA.
  • Standard express analyzer with tracking generator E4407B-STG for faster delivery time, includes options 1DN, AYX, BAA.
  • Communications test express analyzer E4407B-COM for faster delivery time, includes options 1D5, 1DR, B7D, B7E, BAA.
  • Custom configuration for maximum flexibility with standard delivery time.
