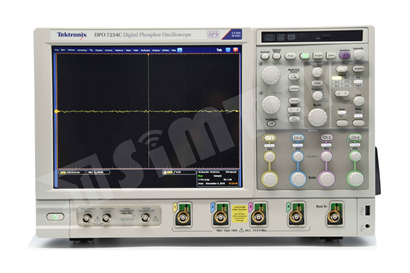

DPO7254C

The DPO7000C digital oscilloscope series allows you to analyze analog and serial bus signals from a single instrument to quickly identify and diagnose problems in complex designs. The DPO7000C Series offers a full range of powerful features that accelerate every stage of design debugging. It also provides a complete set of triggering functions including low-wave, glitch, width, timeout, transition, pattern, status, set/hold violation, window, communication, and serial pattern to help you quickly identify events. Enhanced triggering reduces trigger jitter at the trigger point. The trigger point in this mode can be used as a measurement reference. Each DPO7000C Series oscilloscope comes with the DPOJET Essentials Jitter and Eye Diagram Analysis software suite, which expands the oscilloscope's measurement capabilities to measure continuous clock and data cycles with one click.

Detail

Key Performance Specifications

  • 2.5 GHz and 500 MHz bandwidth models
  • >250,000 wfms/s maximum waveform capture rate with FastAcq®
  • FastFrame™ segmented memory acquisition mode with >310,000 waveforms per second capture rate
  • User-selectable bandwidth limit filters for better low-frequency measurement accuracy



Key Features

  • Pinpoint® Triggering provides the most flexible and highest performance triggering, with over 1400 combinations to address virtually any triggering situation
  • Visual Trigger and Search precisely qualifies triggers and finds unique events in complex waveforms
  • Advanced Search and Mark to find specific events in the entire waveform
  • MyScope® custom control windows and right mouse click menus for exceptional efficiency
  • 53 automated measurements, waveform histograms, and FFT analysis for simplified waveform analysis
  • TekVPI® Probe Interface supports active, differential, and current probes for automatic scaling and units
  • 12.1 in. (307 mm) bright XGA display with touch screen
  • Automated Serial Triggering, Decode, and Search Options for I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, MIL-STD-1553, and USB 2.0
  • Automated Serial Analysis Options for MIPI® D-PHY DSI-1 and CSI-2, 8b/10b, Ethernet, and PCI Express
  • Clock Recovery from serial data streams
  • 64-bit NRZ Serial Pattern Trigger for isolation of pattern-dependent effects up to 1.25 Gb/s
  • Software Solutions provide built-in domain expertise for MIPI® D-PHY, Ethernet, Automotive Ethernet, MOST, and USB 2.0 Compliance Testing, Jitter, Timing, Eye Diagrams, Power, DDR Memory Bus Analysis, and Wideband RF
  • Limit and Mask Testing provide quick insight into signal characteristics
