DSA91304A

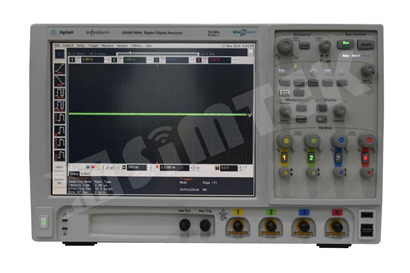

The DSA91304A is a 13 GHz, 4 channel digital oscilloscope from Agilent. Measure voltage or current signals over time in an electronic circuit or component to display amplitude, frequency and rise times, etc. Applications include troubleshooting, production test, and design.

Detail

Specifications

  • Bandwidth                                                13 GHz
  • Bandwidth Upgrades                                Not Available
  • Channels                                                   4
  • Max Memory Depth                                 1 Gpts
  • Max Sample Rate                                     40 GSa/s
  • Display Size                                             12.1 inch
  • ADC Bits                                                  8 bits
  • Noise Floor                                               1.73 mVrms at 50 mV/div
  • Minimum Rise/Fall Time                         32 ps（10-90％），23 ps（20-80％）
  • Special Triggers                                        InfiniiScan Trigger, A-B HW Trigger
  • Protocol Trigger & Decodes                     Optional
  • Applications                                              DDR3/LPDDR3, DDR4/LPDDR4, DisplayPort, • Ethernet 1000Base-T, HDMI 2.0
  • Operating System                                      Windows 7



Key Features and Functions

​

  • Capture a longer signal trace with up to 1 Gpts memory and 40 GSa/s sample rate
  • Get superior measurement accuracy with a noise floor of 1.73 mVrms at 50 mV/div and deep jitter analysis capability
  • Make it easier to compensate for probe, fixture and channel effects with hardware accelerated de-embedding
  • Increase scope’s usability with software applications for compliance, debug and analysis
  • Get measurement automation with the user-defined application
