TDS3034

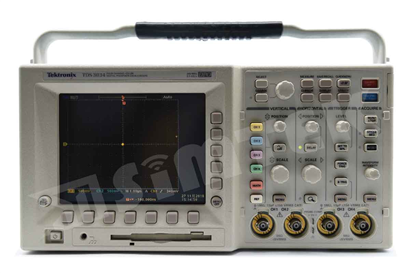

The Tektronix TDS3034 digital phosphor oscilloscope 300 MHz, 2.5 GS / s is one of the most portable digital phosphor oscilloscopes (DPOs). DPO provides a new insight that makes it easy to process complex signals. DPO displays three dimensions of stored and analyzed signal information in real time: the distribution of amplitude, time and amplitude over time.

Detail

Features

  • 300 MHz Bandwidths
  • 4 Channel Versions
  • Sample Rates to 2.5 GS/s per Channel
  • Full VGA Color LCD
  • 25 Automatic Measurements
  • 9-Bit Vertical Resolution
  • Multi-language User Interface
  • QuickMenu Graphical User Interface for Easy Operation
  • Built-In Ethernet Port
  • e*Scope Web-Based Remote Control
  • WaveAlert Anomaly Detection
  • Plug-in Printer for Portable Documentation of Results
  • FFT and Advanced Pulse/Logic Triggering Modules - Now Included On All Models
  • Limit Testing for Rapid Go/No-Go Testing
  • Advanced Triggers including Glitch, Runt and Logic
  • Telecommunications Mask Testing
  • Two Video Modules for Testing and Troubleshooting

Applications

  • Telecommunications Manufacturing (Telecom Mask Test Application Module for Pass/Fail Compliance of ITU-T G.703 and ANSI T1.102 [Up to STS-1 Rates] Standards)
  • Digital Design and Debug
  • Video Design and Service (Video Application Modules Offer Line Count, HDTV and Custom Video Trigger, Video Display Graticules, SDI to Analog Video Conversion with Composite and Component Outputs, Video Picture Identification and Vectorscope)
  • Industrial Electronic Design
  • Power Supply Design
  • Connected Instrumentation (10Base-T LAN, GPIB and VGA Modules with RS-232)
  • Highly Mobile Environments (Optional Battery Pack for Convenient Use in the Field or Away from the Bench)
